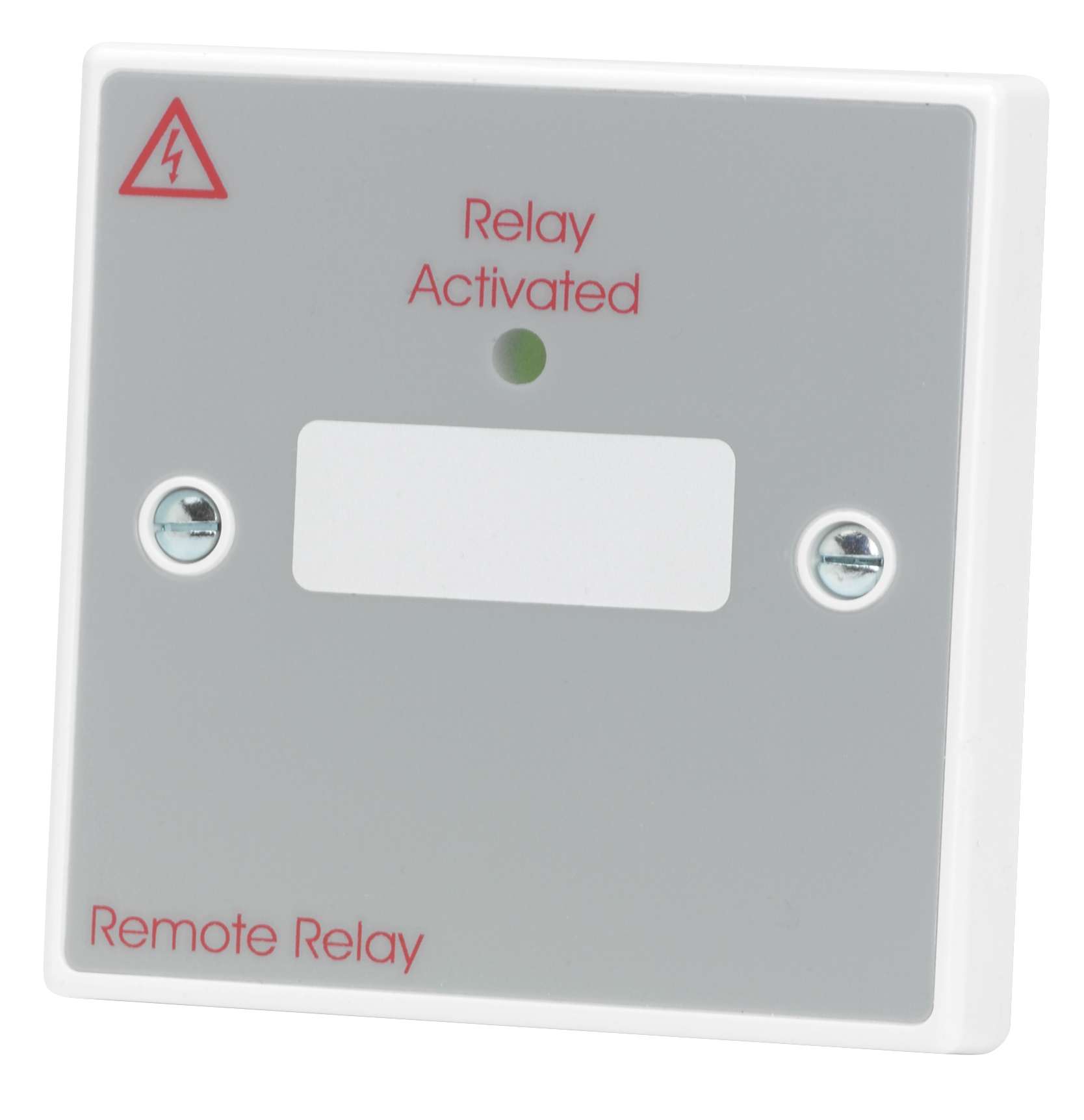

C-TEC 24V 5A Relay On A Plate | BF376

In: Addressable Systems, Conventional Systems, Fire, Fire Alarm Accessories, Two Wire

C-TEC 24V 5A Relay On A Plate | BF376

You are here: Home » Shop » C-TEC 24V 5A Relay On A Plate | BF376

Product code: REL018A

A general purpose, double-pole, polarised 24V 5A relay designed for use in 24V fire alarm systems.
Incorporates a high intensity LED which illuminates red when the relay is active.
Can be connected to a suitable control panel relay output or a standard polarised fire alarm sounder circuit to operate door retaining magnets, rollershutter doors, etc.
Can be mounted on 25mm flush or surface mount back boxes.

Login to see price

Activation current	Typically 30mA @ 24VDC.
Indicators	Red Relay Activated LED.
Connections	+V; -V (Supply); NC; C; NO (SW1 & SW2). Contact rating @ 24VDC is 5A (resistive) 2A (inductive); Contact rating @ 240VAC is 5A (resistive) 2A (inductive)

Construction & finish	White PVC plate; Light grey label; Silver nickel contacts.
IP Rating	IP40.
Weight	78g.
Operating conditions/temperature	-10ºC to +60ºC.

Specifications

Dimensions

85 W x 85 H x D 27mm (Can be mounted on a standard UK 25mm single gang flush or surface back box).

Download Datasheet

Download Datasheet

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

£18.00

8 in stock
