HKC | 10270 Kit | Black/White Keypad

You are here: Home » Shop » HKC | 10270 Kit | Black/White Keypad

Designed for larger domestic and commercial applications the SW 10270 incorporates both HKC’s SecureWatch wired and SecureWave wireless technologies. The panel is a true hybrid and communicates with an extensive range of wired and wireless devices including life protection devices. A range of communicators and warning devices are also available to choose from. It is identical to its predecessor the SW 1070 except it: has up to 270 wire/wireless zones, works with the GSM-WiFi dual path communicator and is compatible with our new RF-Expander.

Login to see price

200 x two-way wireless detectors*
2 two-way wireless Keypads*
10 two-way wireless Internal Sirens*
10 two-way wireless External Sirens*
15 RF-Expanders
64 two-way wireless Key-fobs*
176 wired zones (with ID sensors/modules)
270 wired/wireless zones*
Main panel comes with 10 on-board zones
8-way block system with 1 common area
8 x wired keypads & 13 x 10-Zone expanders
All expander zones fully analysed
64 users
3 SmartLink700 remote users
Up to 231 programmable outputs
Output Mapping
999 event engineer log
Plug-on communication modules supporting
SecureComm and HKC App
Modules also support IP Reporting
2 serial ports and 1 USB (mini B) port
Plug-on Digi supporting SMS & Voice Messaging
BS8243 and PD6662 Compliant
Mains: 230Vac +/- 10%, 50Hz
Output: 13.7Vdc +/- 0.2V
Current Consumption: 75mA
Current: 1.5A
Temperature: -10 to +40°C
Weight: 1,560g
Size: 360mm x 236mm x 87mm
EN 50131-1: Grade 2, Class II

Specifications

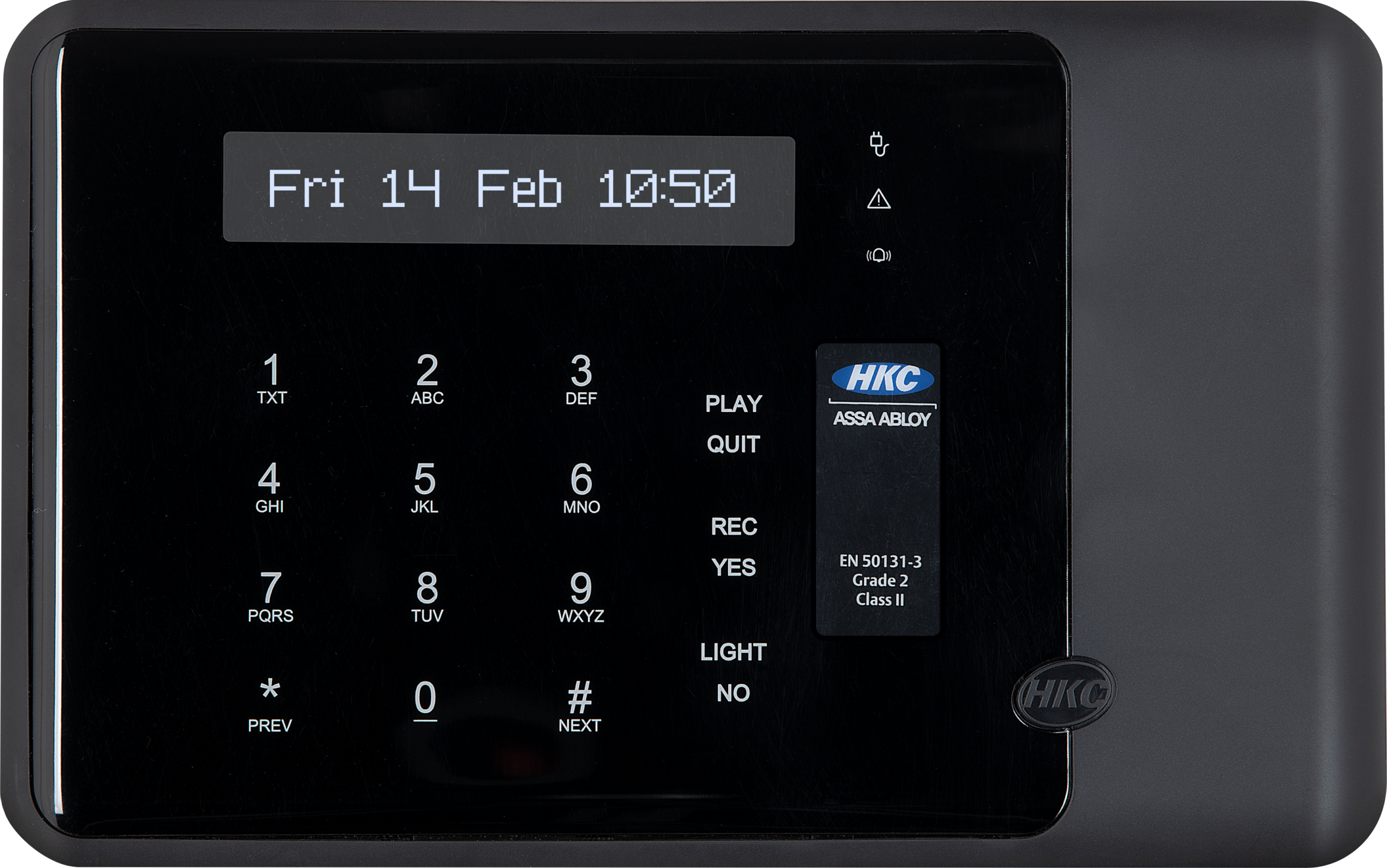

Choice of Keypad

White/Black

Download Datasheet
