Product code: CON002

Two free spacers and double sided sticky pad for ease of installation with every unit

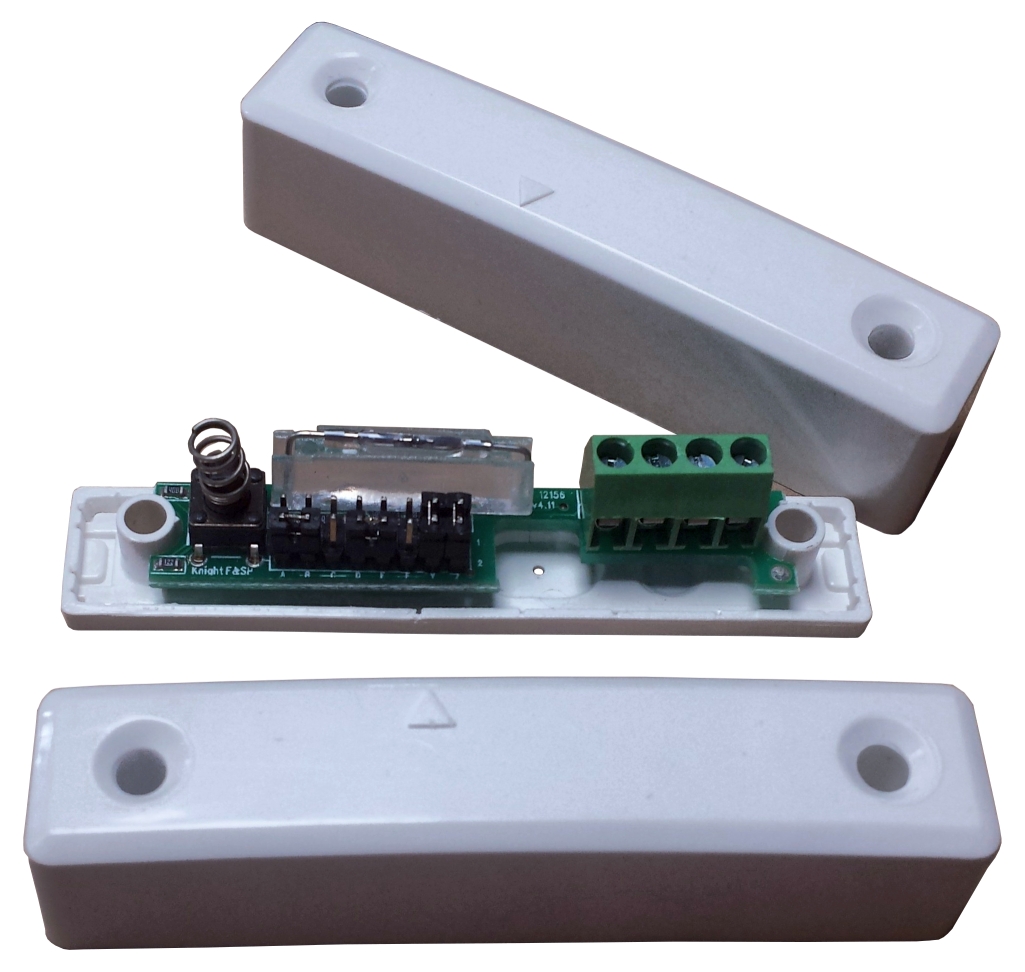

Grade 2 Small Surface Contact with Selectable Resistors
Double door contacts
Replaces YEND24 Version 1 on 20.02.17
This is compatible with all mainstream UK control panels and includes both EOL and Alarm by-pass resistor options
Colour: White (for brown add suffix B to code)
Environmental Class 2
Operation Gap: 25mm Approx
Dimensions: 67mm x 14mm x 17mm
Terminals: 4-Terminal Block
Tamper: TACT Microswitch
Alarm Values: no res, 1k, 4k7,5k6,6k8,8k2
EOL Values: no res, 1kr,2k2,4k7,5k6,8k2
Also includes option for traditional 4 wire non-resistored configuration
Suitable for double doors / wired in series / shared zone
Note this contact already meets the requirements of EN50131-2-6: 2008
Same footprint as discontinued YEND21 and YEND24 v1 for ease of retro-fitting / upgrades

Login to see price

Specifications

Resistors compatible with:

Honeywell, Ademco, Orisec, Scantronic, Menvier, Texecom, Pyronix, Castle, HKC, Aritech, DSC, RISCO (Gardtec), Guardall and Inner Range Control Panels
