KNIGHTS XA41MULTI | Flush Contact | White | Multi | Grade 3

In:

KNIGHTS XA41MULTI | Flush Contact | White | Multi | Grade 3

Product code: CONXA41MULTI

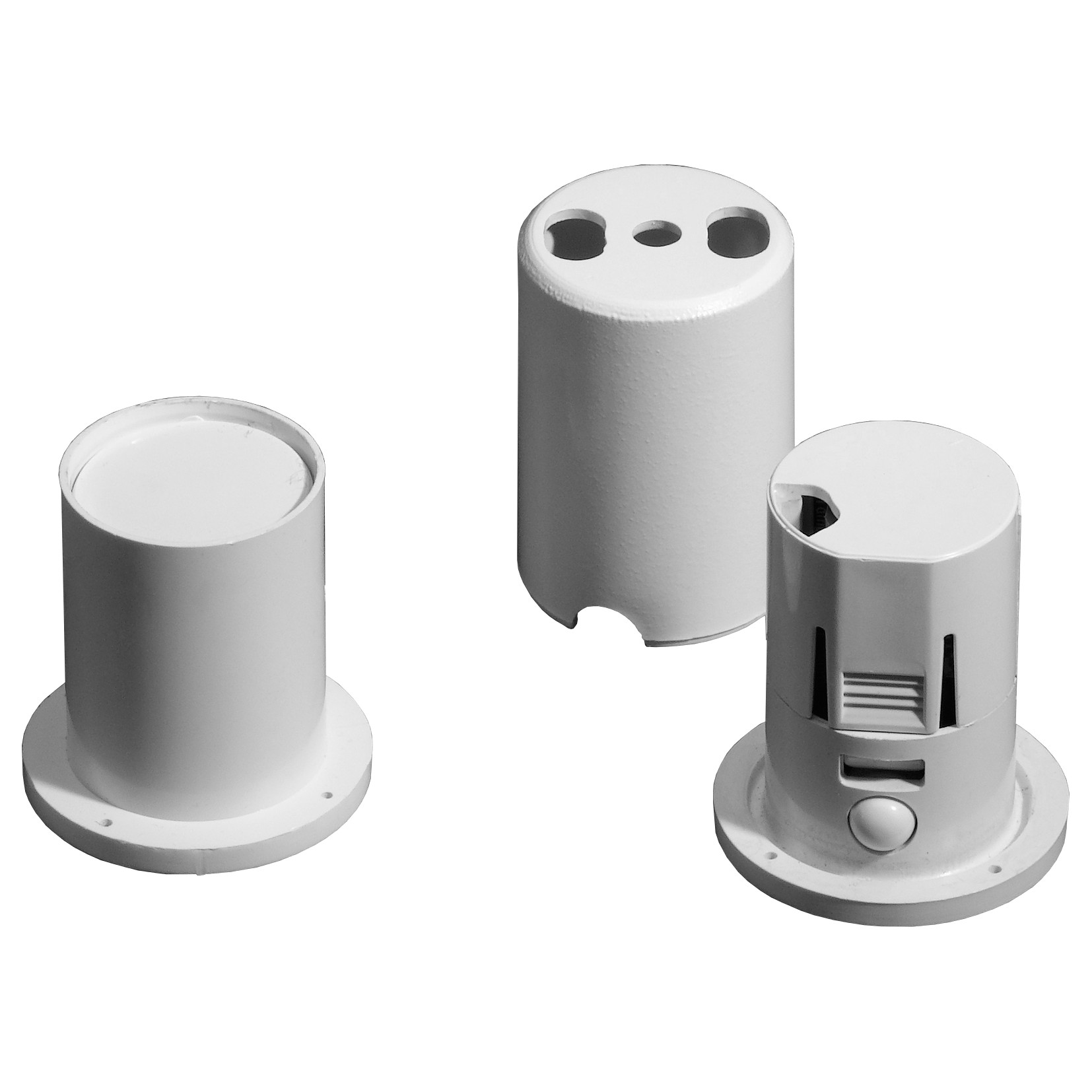

The XA41MULTI is a 4 terminal white flush contact complete with selectable EOL/Alarm resistors. It will fit a standard 20mm diameter recess, expanding to 22mm if the optional contact sheath is used.

Login to see price

  • rade 3 Flush Tampered Quickfit Contact With Multiple Resistors
  • Double door contacts
  • Rectangular Plate
  • Will work on shared zones / double doors / wired in series
  • This is compatible with most mainstream UK control panels and includes both EOL and alarm by-pass resistor options
  • It has a microswitch tamper
  • Environmental Class 2
  • Colour: White
  • Note: Add suffix B for Brown
  • Operation Gap : 14mm Approx
  • Dimensions: 20mm dia body, 30mm deep
  • Terminals : 4-Terminal Block
  • Tamper – TACT Microswitch
  • Includes Resistors compatible with – Honeywell, Ademco, Orisec, Scantronic, Guardtec / RISCO, Menvier, HKC, Siemens, Europlex, Guardal, DSC, Texecom, Pyronix, Castle, PACOM Control, Inner Range Panels
  • Alarm Values: No res, 1kr, 2k2, 4k1 (8k2), 4k7, 5k6, 6k8, 10k
  • EOL Values: No res, 1kr, 2k2, 4k1 (8k2) 4k7, 5k6, 10k
  • Just move and orientate the easily accessible coloured pcb jumpers to select-as per the instructions
  • Note: this contact meets the requirements of EN50131-2-6: 2008

Specifications

  • Terminals
    4
  • Tamper
    Yes - TACT Microswitch

Download Datasheet

Download Datasheet
