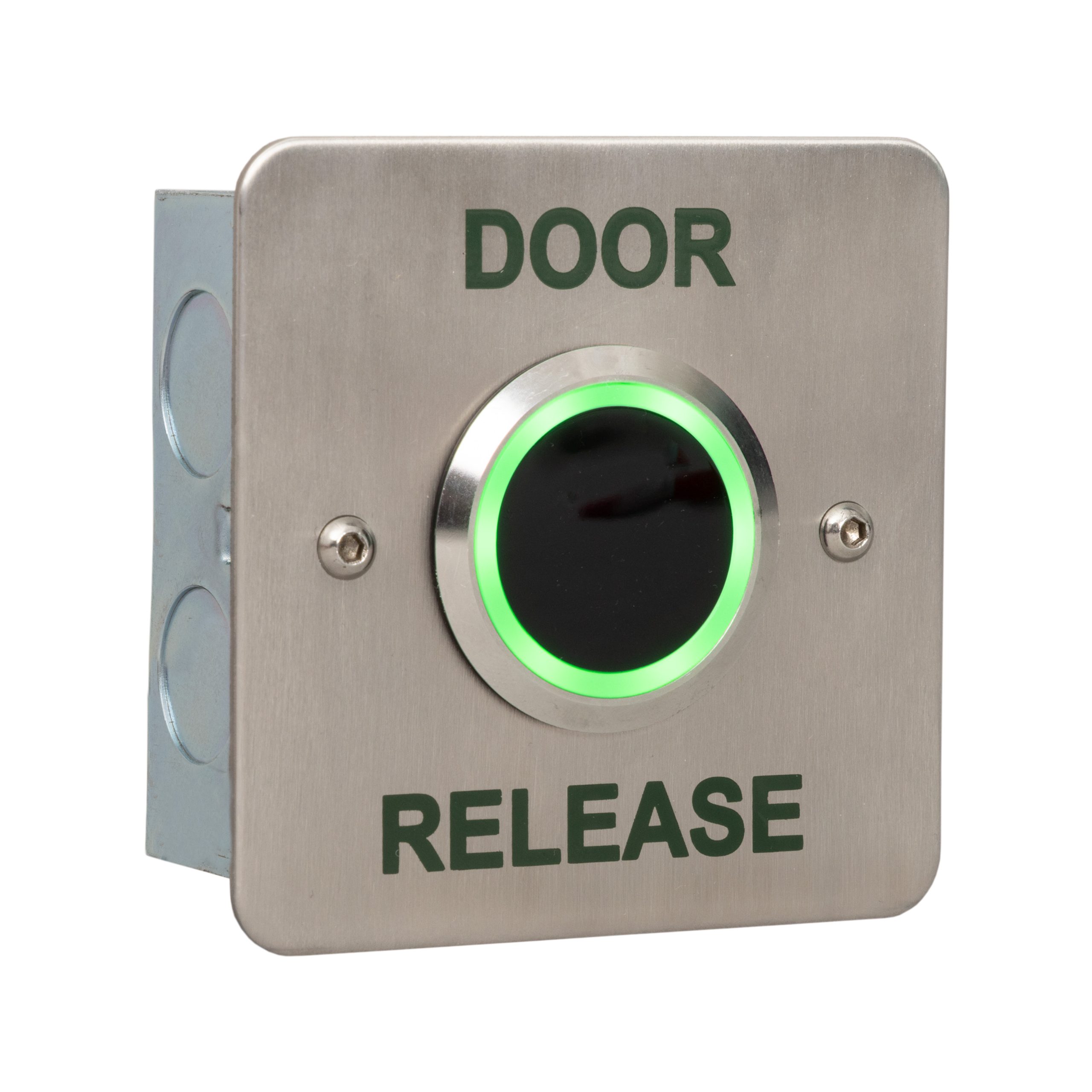

RGL K-EB/TF-DR Door Release Flush No Touch Button

Technical specifications

• Contacts: Double pole NONC contacts
• Contact Load: 0.5A @ AC 125V / 2A @ DC30V
• Voltage: 12/24 VDC @ 45mA operating
• +/- 10% voltage tolerance
• Legend: Touch Free Exit
• Button rated IP65 ingress protection
• Relay timer: 5 seconds
• Operating distance: 0-150mm
• -30° to +80° operating temperature
• Humidity: 20%-80%
• Designed to prevent interference with other infra red devices
• Requires a permanent power supply – volt free contacts

Features:

• 38mm / 22mm Touch free sensor button
• Illumination – Green to red (or red to green)
• Flush mounted box
• Can be surface fitting with EXTR03 or EXTR04
• Easy clean surface
• Ideal for general / sensitive areas
• Screw footprint for flush fitting onto standard back box
• Distance between fixing holes 60mm
