Vigitron Vi00103 Ethernet and PoE Port Multiplexer

Product code: IP001

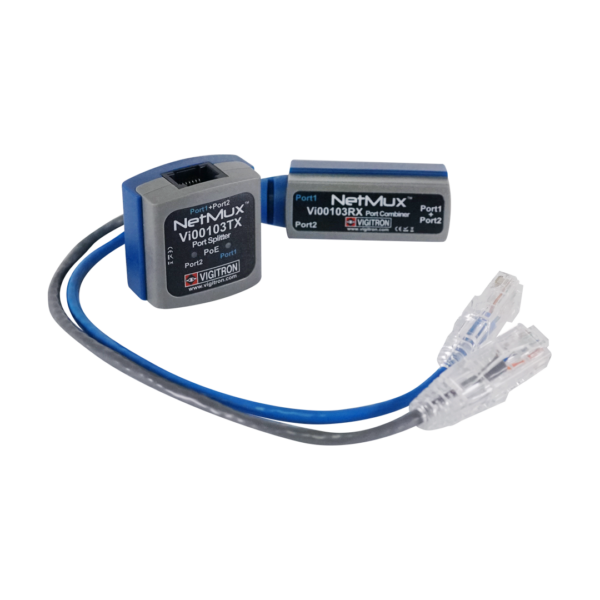

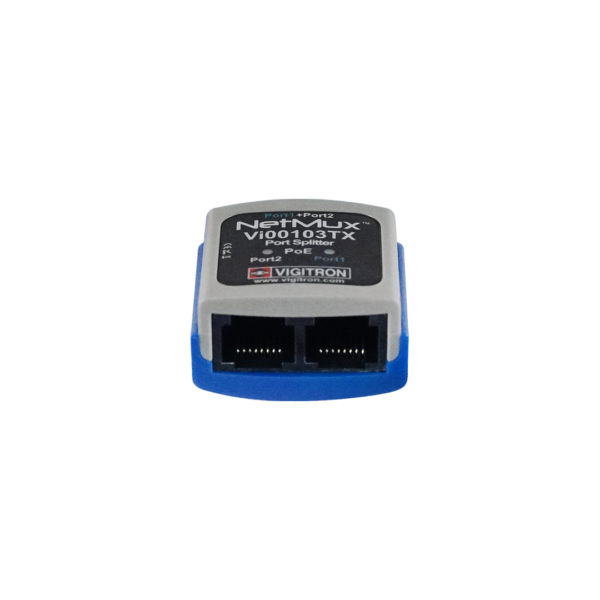

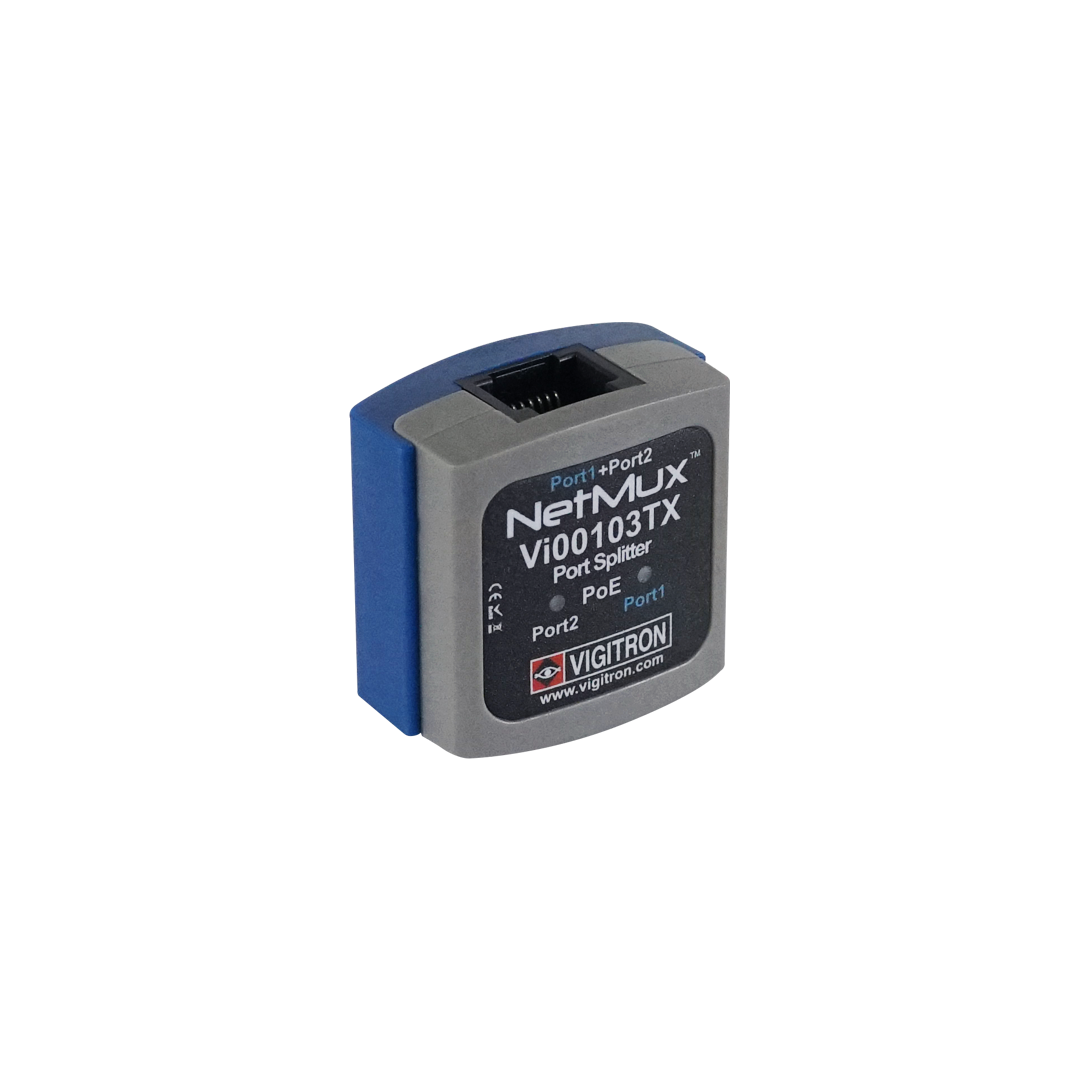

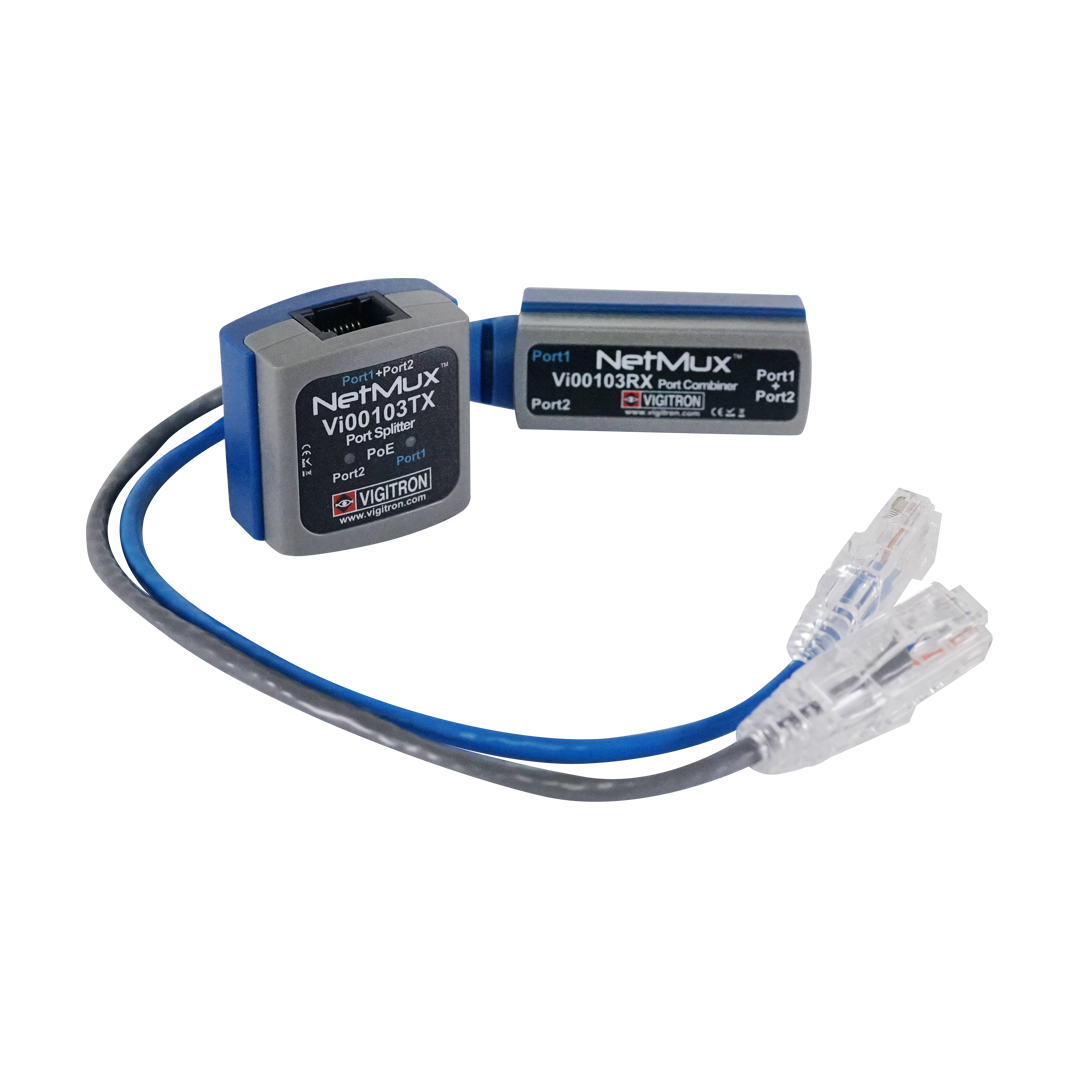

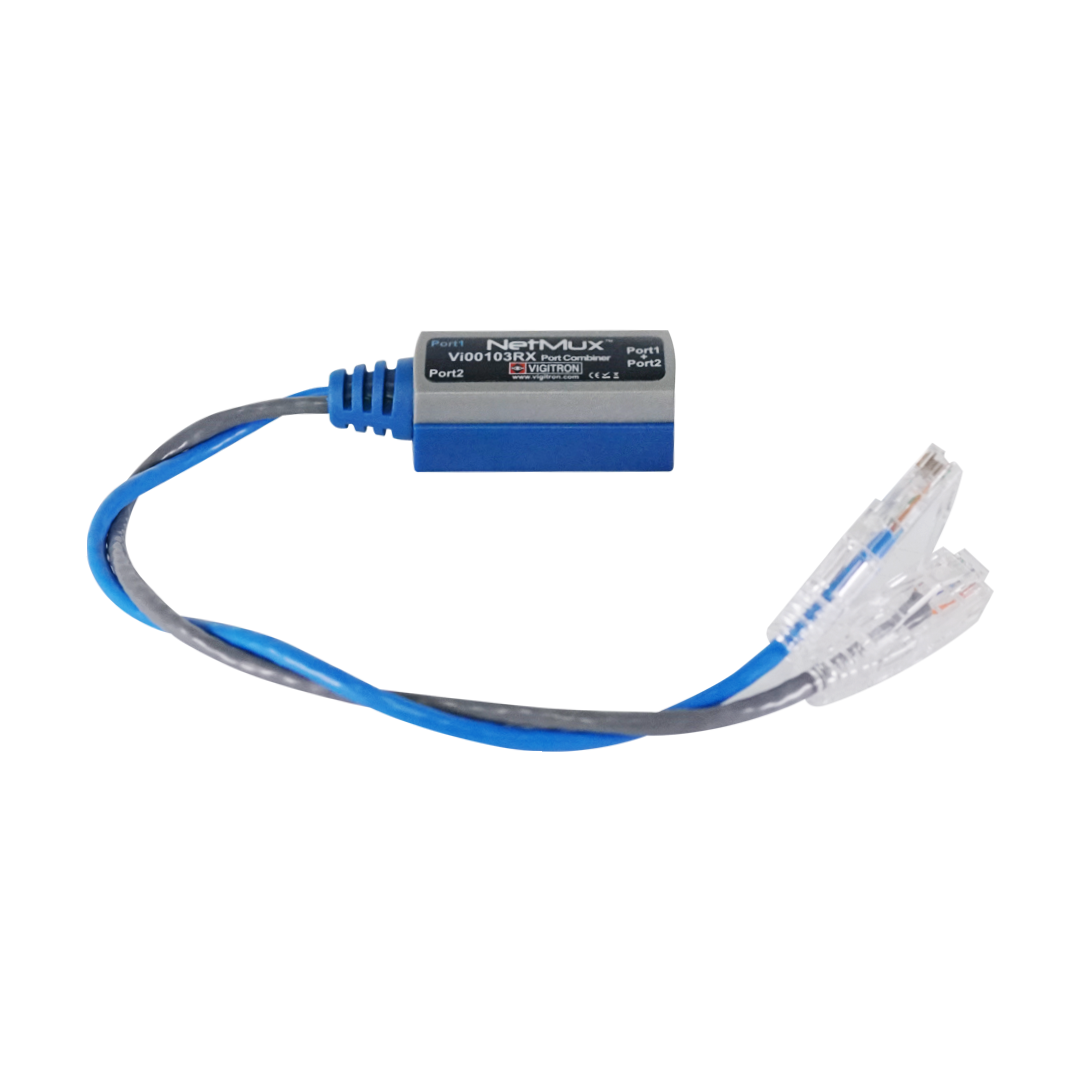

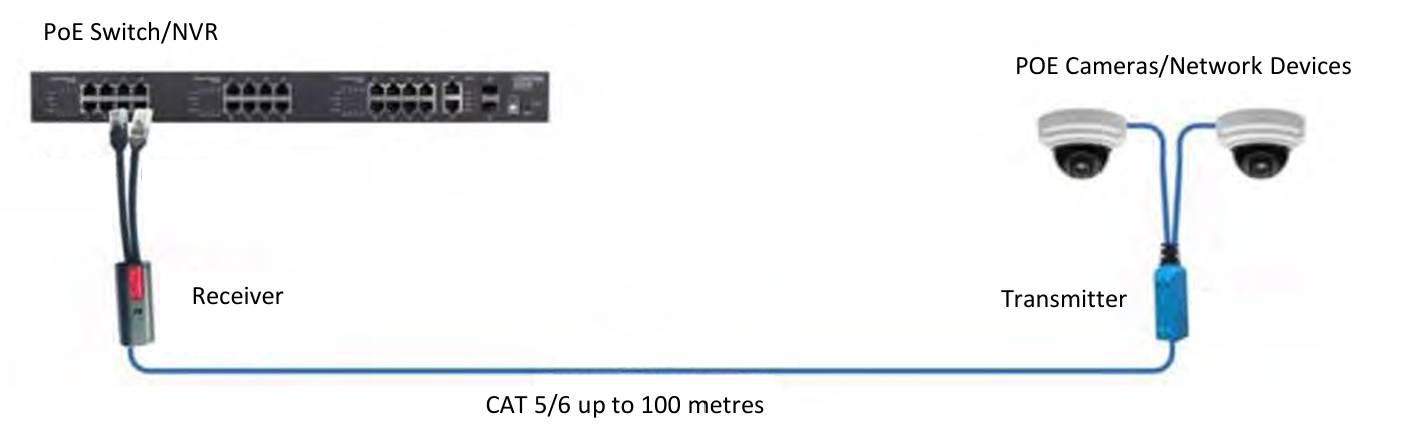

The NetMux™ Vi00103 port multiplexer enables connecting two IP/POE devices using a single Cat5/6 cable. It includes a port Combiner and a Port Splitter. The Vi00103RX combines two IP/PoE signals and transmits them through only one Cat5/6 cable. It has two built-in 10-inch Cat 5 pigtail cables to connect to the PoE switch. The Vi00103TX separates the combined signals and connects them to two ports of the PoE switch. It has two integrated LEDs to provide an indication of the PoE status for each port.

The Vi00103 can handle PoE inputs of up to 37W for each connected device. The NetMux™’s innovative design is compact and easy to use. It is compatible with IEEE 802.af, IEEE 802.at, and most non-standards POE systems up to 37W for 10/100 BASE-T environments.

NetMux™ is a perfect solution for reducing installation costs or adding PoE cameras or other IP/PoE devices to an existing installation.

Login to see price

• Connects two IP/PoE devices to a PoE switch using a single Cat5/6 cable
• Provides up to 37W to each of 2 devices
• Reduces installation costs and time
• Indicates PoE presence at Camera side (TX module)
• Compatible with IEEE 802.3af and IEEE 802.3at
• No power source required
• Low cost and easy to use

Applications:

• Adding a new IP camera to an existing installation without extra wiring
• Home security and communication applications
• Cost-effective solution for powering two IP devices using a single cable



Specifications

  • Ethernet Interface
    10BASE-T and 100BASE-T
  • Power Source
    No external power needed
  • Connections
    Vi00103RX: 2 x Male RJ45, 1 x Female RJ45 Vi00103TX: 3 x Female RJ45
  • PoE Compatibility
    IEEE802.3af/at maximum 37W per port
  • Dimensions
    Vi00103RX: 0.8x0.84x1.90 in, 2.03x2.13x4.83 cm (HxWxL) Vi00103TX: 0.83x1.39x1.44 in, 2.11x3.53x3.66 cm (HxWxL)
  • Weight
    Vi00103RX: 0.068 lb (31 g) Vi00103TX: 0.035 lb (16 g)

Download Datasheet

Download Datasheet

1 Customer Review

  1. John Henry

    Wow. what a piece of equipment, I have now used these four times on sites where there has either been cable damage or coud not get a cable to a point due to the building being “finished” and client asking for extras. Certainly save me hours of work and works great.
